2. Film Lock Profile & Spring Wire

Galvanized Profile

Type No.   Material              Thickness    Specification     ZN coat

LP-S-0.7   Hot dip galvanized steel   0.7mm    (W)30mm*(H)11mm ≥100g/m2

LP-S-0.9   Hot dip galvanized steel   0.9mm    (W)30mm*(H)11mm ≥275g/m2

Remark: 2m/3m/4m/6m or according to client request

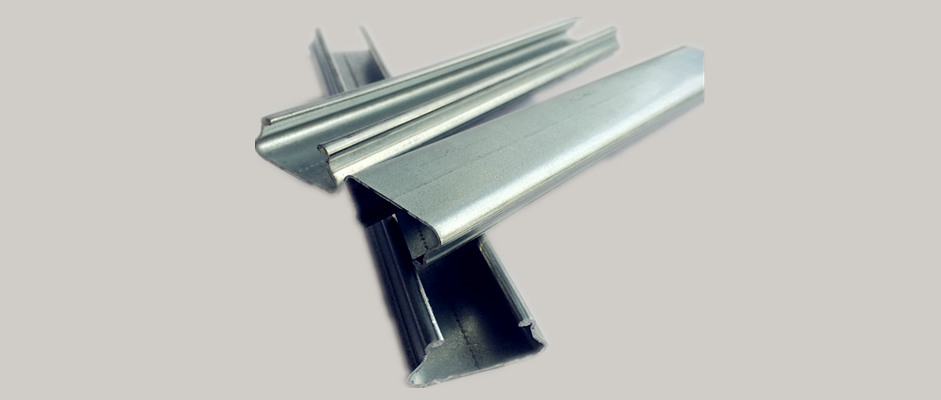

Aluminum Profile

Type No.   Material     Thickness    Specification       Length

LP-A-1.0   Aluminum    1.0mm       W)28mm        2m/3m/4m/6m

LP-A-1.2   Aluminum    1.2mm       (W)30mm       2m/3m/4m/6m

LP-A-1.5   Aluminum    1.5mm       (W)33mm       2m/3m/4m/6m

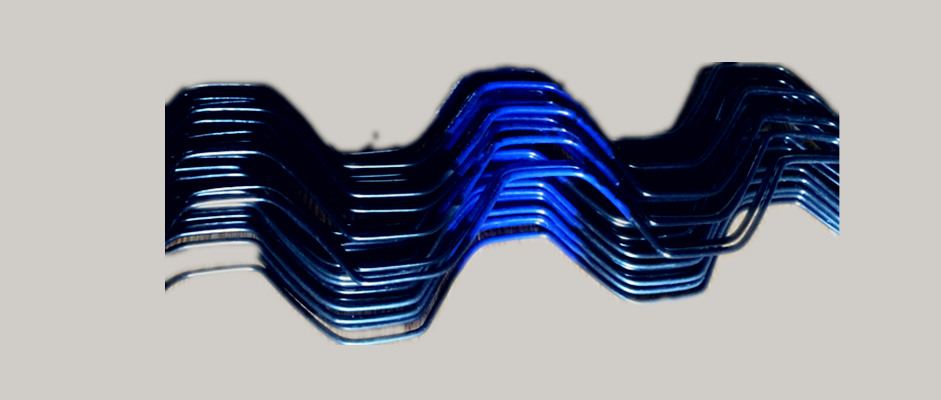

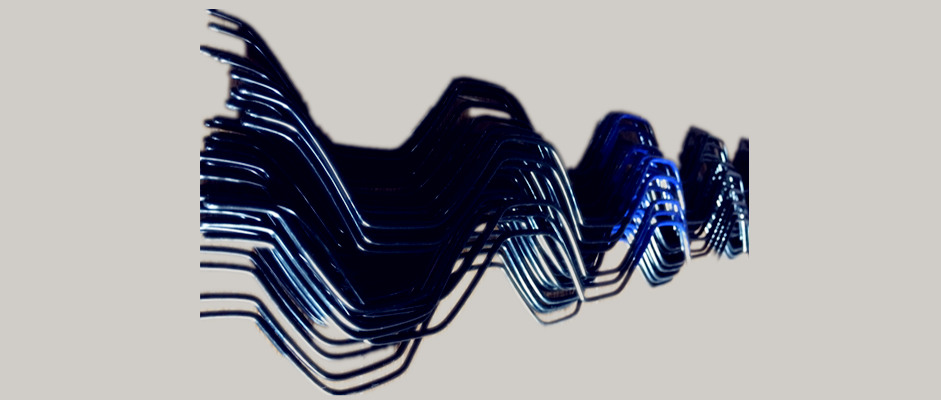

Film Fastness Spring wire

Type No.   Galvanized steel spring wire

Length       2m

Diameter     2.0mm/2.3mm           Color: Black/Green/OEM
